How to install the Dymo printer in Davis 142 (Pharmacy lab).

  1. Install the Dymo Connect for Desktop
    https://www.dymo.com/support?cfid=user-guide

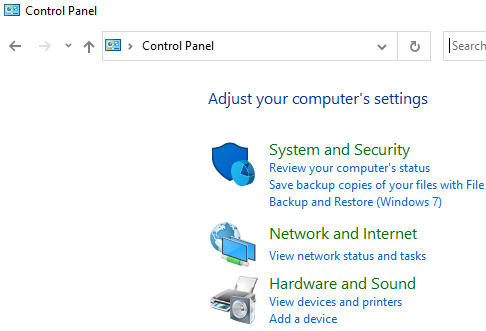

  2. Click Start >Type "Control Panel" Find "View Devices and Printers"
  3. Click Add a Printer
  4. Click "The printer that I want isn't listed" at the bottom of the searching for printers screen.

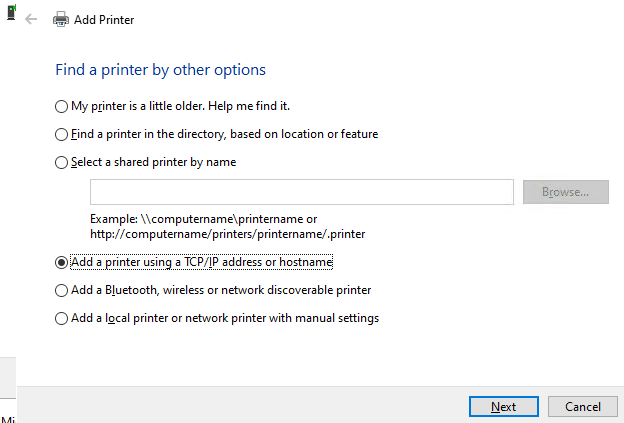

  5. Select "Add a printer using a TCP/IP address or hostname" and click next

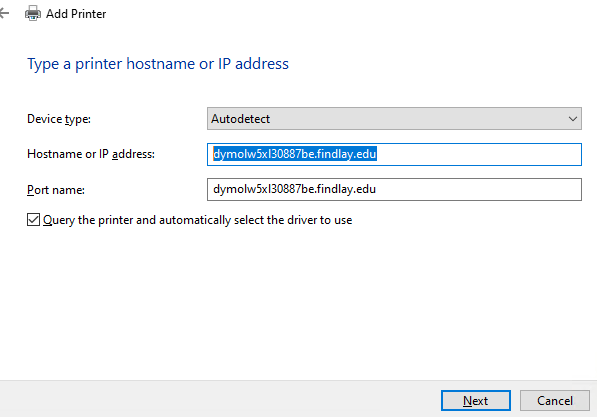

  6. Type "dymolw5xl30887be.findlay.edu" in the "Hostname or IP address:" field and click next

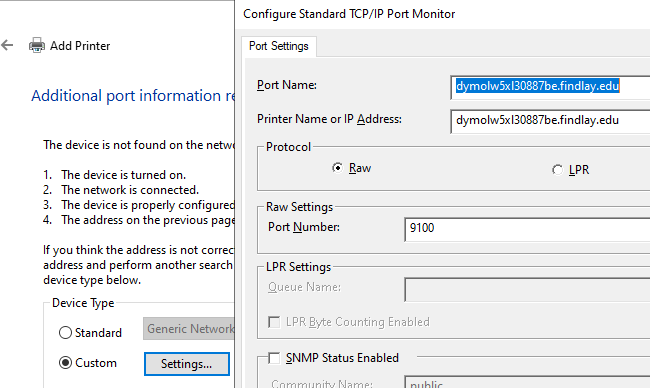

  7. On the "Additional port information" screen, select "Custom" and click Settings. Ensure the Protocol is set to "RAW" and the Port number is 9100.  Click "OK" and click "Next"
  8. On the "Install the Print Driver" screen, find "Dymo" and then the 5XL driver and click "Next"
  9. Leave everything else set to their default values, and when asked if you want to share the printer do not share it.
  10. Test the label printer and ensure it will work using the Dymo software.
